Buralloy <br/>Heat exchanger seal 2500

Heat exchanger seal 2500

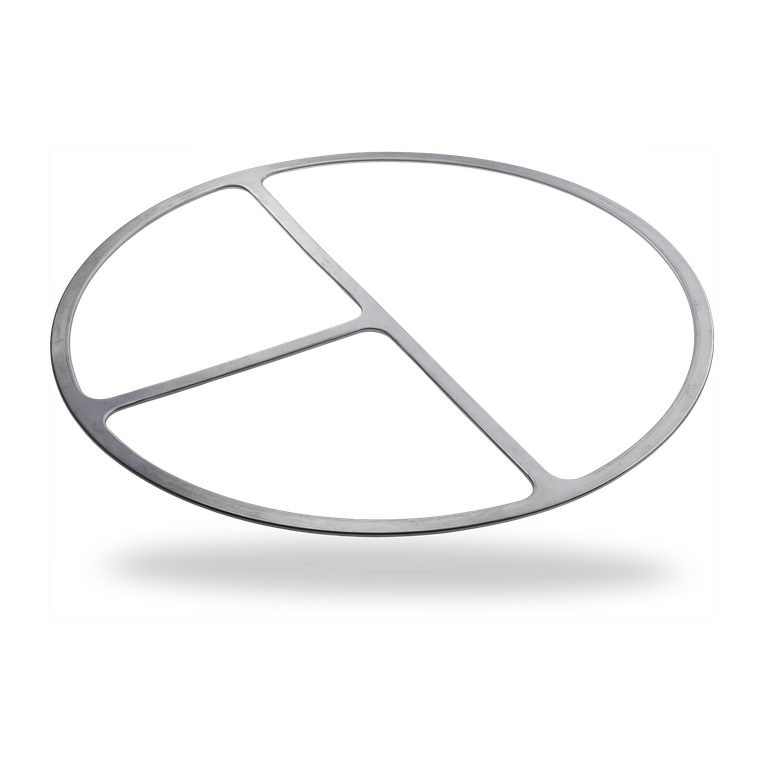

The Buralloy heat exchanger seal 2500 is a semi-metal gasket with a soft core and metal jacketing. The Buralloy 2500 thus combines the benefits of a compressible soft seal with the mechanical strength of a metal seal. As a result, it can be produced in many different material combinations and in different styles to suit the application.


  • High pressure resistance
  • High temperature stability
  • Easy to handle
  • Suitable for confined installation spaces

Operating range

Pressure, temperature and corrosion resistance in relation to the combination of materials used.


Filler materials:
  • Aramid fiber sheet
  • Graphite
Metal jacket materials:
  • Aluminium
  • Copper
  • Tinplate (tin)
  • Steel
  • 304 or 304L
  • 316 or 316L
  • 321
  • Hastelloy B® or C-276®
  • Inconel 600®
  • Monel 400®

Forms of supply

  • Seal sizing to suit individual requirements
  • Standard dimensions as per ASME B16.20 or DIN standard
  • More detailed specifications as per standard and individual drawing

Similar products

Buralloy Ring Type Joint 2961

Buralloy ring-type joint 2961 (RTJ) gaskets are manufactured from metallic materials in compliance with American standard ASME B 16.20 and the API specification. Detailed monitoring of every manufacturing step guarantees that the sealing rings offer the necessary surface hardness. This creates a functional seal without damage to the flanges. This gasket type is used successfully in downstream refinery applications, for example. RTJ gaskets are also commonly used in high-pressure valves and the associated pipe connections and in pressure vessel joints.

Camprofile serrated gasket 9588

The serrated gasket 9588 has a concentrically-machined profile based on a 4 mm thick stainless steel base plate. This is coated on both sides with a 0.5 mm thick layer of pure graphite (purity > 98%). Thicker layers are available on request. The serrated gasket 9588 is easy to handle and is particularly suitable for applications in the chemical and petrochemical industries and in power station technology.

Corrachem 9631/T corrugated gasket

The Corratherm 9631/T corrugated gasket is a high-quality two-component gasket made from PTFE and stainless steel. Its core is consists of a corrugated stainless steel profile ring with PTFE on both sides. Gaskets with an outer diameter up to 1,000 mm are produced in a single piece, while for larger dimensions, the metal base plate must be produced in multiple segments and welded together.
