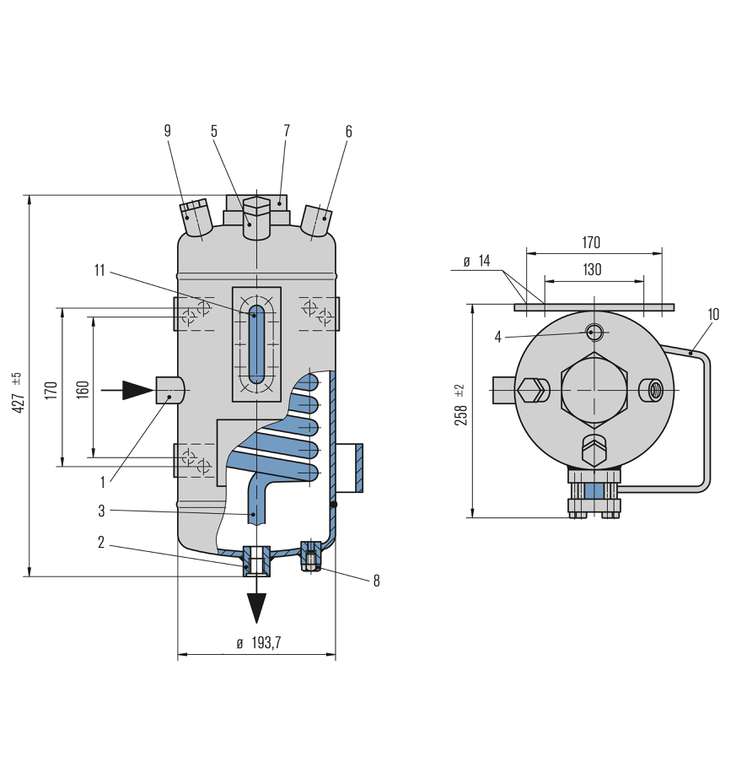

Item Description
1 Buffer/barrier fluid IN (G1/2")
2 Buffer/Barrier fluid OUT (G1/2")
3 Cooling water IN (G1/2")
4 Cooling water OUT (G1/2")
5 Filling connection with plug (G1/2")
6 Pressure gas connection (G1/2")
7 Connection for level switch or level indicator (G2")
8 Connection for refill unit (G1/8")
9 Universal connection (G1/2" for safety valve, flare, etc.)
10 Bracket for refill unit
11 Sight-glass

TS2000

Features

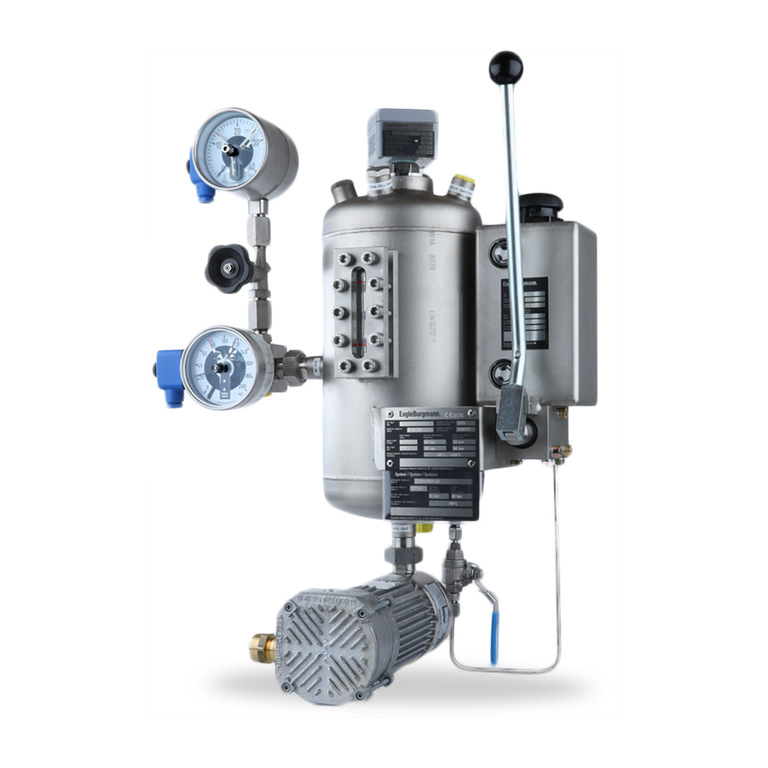

With the EagleBurgmann TS2000 thermosiphon system it is possible to supply buffer/barrier fluid to double and tandem mechanical seals for a broad range of applications. The range is available in 2 different pressure levels with dished heads, sight-glass for level monitoring and with or without cooling coil. TS vessels are equipped as standard with all the necessary system connections and brackets. The modular system allows the TS2000 vessels to be combined with a wide range of system components such as, level switch, circulation pump, hand refill pump, thermometer, base frame, etc.

Circulation based on API 682 / ISO 21 049: Plan 52, Plan 53A

Advantages

  • Modular system: combination with a wide range of system components possible
  • Vessel made of 1.4571 stainless steel / borosilicate sight-glasses: suitable for universal applications
  • Available with or without cooling coil
  • Sockets with recessed gasket: no contamination of the circuit by thread sealant

Standards and approvals

  • PED 2014/68/EU (Design and production in accordance with EU Pressure Equipment Directive)
  • ASME VIII, Div. 1 (Design, calculation and production)
  • SELO, TR CU on request

Functional description

The TS system performs all the basic functions of a buffer/barrier system for the operation of double seals:
  • to pressurize the buffer chamber
  • leakage compensation
  • buffer/barrier fluid is circulated by thermosiphon effect or external circulation system
  • to cool the seal
  • to selectively absorb product leakage and prevent dry running (tandem arrangement)
Use compressed air or nitrogen for pressurization.

Circulation in accordance with API 682 / ISO 21 049: Plan 52, Plan 53A


Product variants

Designation TS2000-00 TS2001-00 TS2063/A002 TS2063/A001 TS2000/C104 TS2000/C105 TS2000/C107 TS2000/C200
Design code PED 2014/68/EU PED 2014/68/EU PED 2014/68/EU PED 2014/68/EU ASME VIII, Div.1
without U-stamp		 ASME VIII, Div.1
without U-stamp		 ASME VIII, Div.1
with U-stamp		 PED / EN13445
Integrated cooling coil ■ ■ ■ ■ ■ ■
Volume, vessel (liters) 9 9 9 9 12 12 12 9
Volume, tube (liters) 0.5 0.5 0.5 0.5 0.5 5.5
Allowable pressure1) 30 bar
(435 PSI)		 30 bar
(435 PSI)		 63 bar
(914 PSI)		 63 bar
(914 PSI)		 20 bar
(290 PSI)		 45 bar
(653 PSI)		 45 bar
(653 PSI)		 30 bar
(435 PSI)
Allowable temperature1) -60 ... +200 °C
(-76 ... +392 °F)		 -60 ... +200 °C
(-76 ... +392 °F)		 -60 ... +200 °C
(-76 ... +392 °F)		 -60 ... +200 °C
(-76 ... +392 °F)		 -29 ... +150 °C
(-20 ... +302 °F)		 -29 ... +200 °C
(-20 ... +392 °F)		 -29 ... +200 °C
(-20 ... +392 °F)		 -60 ... +200 °C
(-76 ... +392 °F)
Working volume,
MAX-MIN (liters)		 1.8 1.8 1.8 1.8 2.1 1.9 1.9 1.8
Cooling capacity –
without cooling water (kW)2)		 0.5 0.5 0.5 0.5 0.5 0.5 0.5 0.5
Cooling capacity –
natural circulation (kW)2)		 1.5 1.5 1.5 1.5 1.5 1.5
Cooling capacity –
forced circulation (kW)2)		 4.0 4.0 4.0 4.0 4.0 4.0
Metal parts 1.4571 1.4571 1.4571 1.4571 acc. ASME
Section II Material		 acc. ASME
Section II Material		 acc. ASME
Section II Material		 1.4571
Sight-glass Reflex
Borosilicate		 Reflex
Borosilicate		 Reflex
Borosilicate		 Reflex
Borosilicate		 Reflex
Borosilicate		 Reflex
Borosilicate		 Reflex
Borosilicate		 Reflex
Borosilicate
Seal PTFE PTFE PTFE PTFE PTFE PTFE PTFE PTFE
Net weight (approx.) 15.5 kg
(34 lb)		 12.5 kg
(28 lb)		 28.5 kg
(63 lb)		 26 kg
(57 lb)		 19.2 kg
(42 lb)		 30 kg
(66 lb)		 28.5 kg
(63 lb)		 15.5 kg
(34 lb)

Other versions on request.

1) Design data, permissible working values depend on the actual conditions of service.
2) The cooling performance depends on the available fluids, their temperatures and flow rates. Please contact EagleBurgmann for professionally selecting the correct heat exchanger.
